Model 1 Metric Tube Die Sets

$410.00

10x3

Metric Tube Die Sets

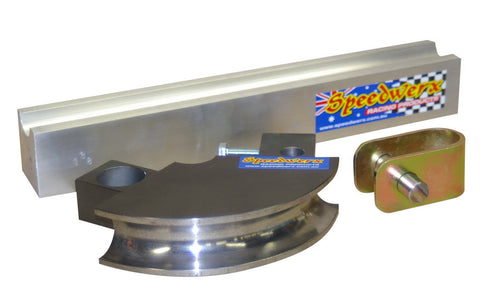

Includes main die, follow bar & clamp, main die wrap 120 degrees.

Die Sets for:

IMPERIAL DIE SETS click here
NOMINAL BORE GAL/BLACK PIPE DIE SETS click here
SQUARE TUBE DIE SETS click here

Important General Information

Please note tube and pipe are dimensioned differently and therefore require different die sets.

Tubing is sized according to it's outside diameter (OD) and pipe is sized by it's nominal bore (NB) however the outside diameter must be known for correct die application.

Not all dies are suitable for bending aluminium or stainless steel, however all dies will bend chrome moly or mild steel. To determine material suitability, outside dimension and wall thickness, please refer to specifications for each size.

The Centre Line Radius is measured from the centre of the die to the centre of the tubing (tube, pipe).

Minimal wall thicknesses are a guide only.

Please call to confirm availability or to order: sales@speedwerx.com.au
Tel 02 4677 1212. Prices subject to change without notice.

  • Suitable for Model 1 Tube Bender
