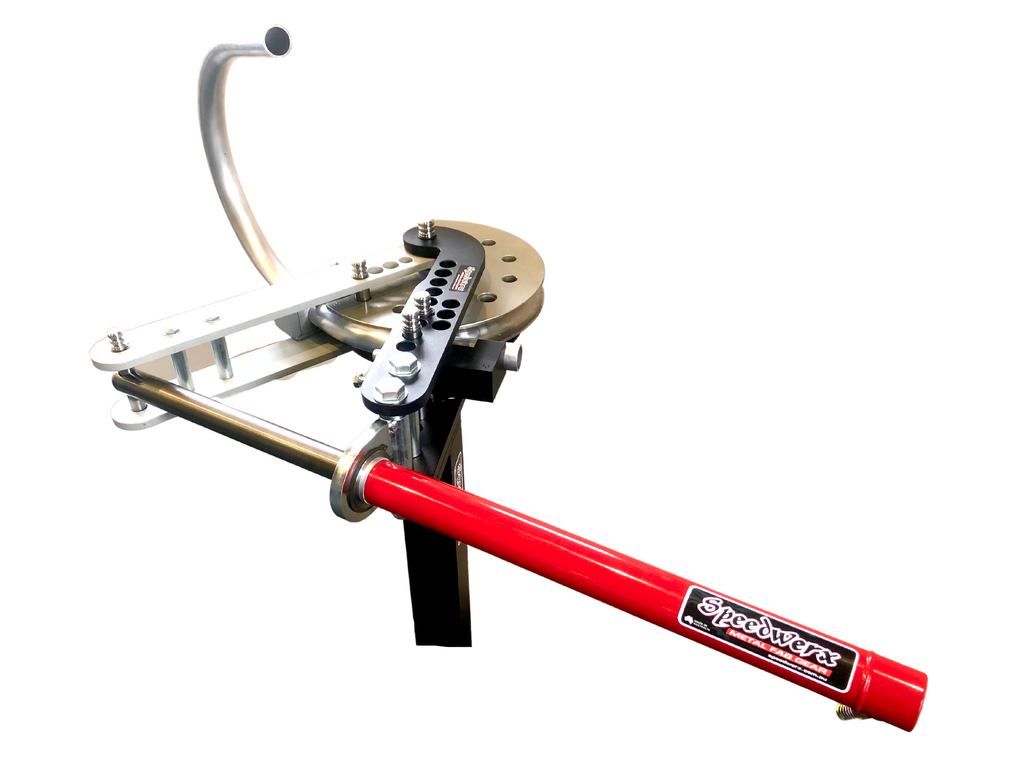

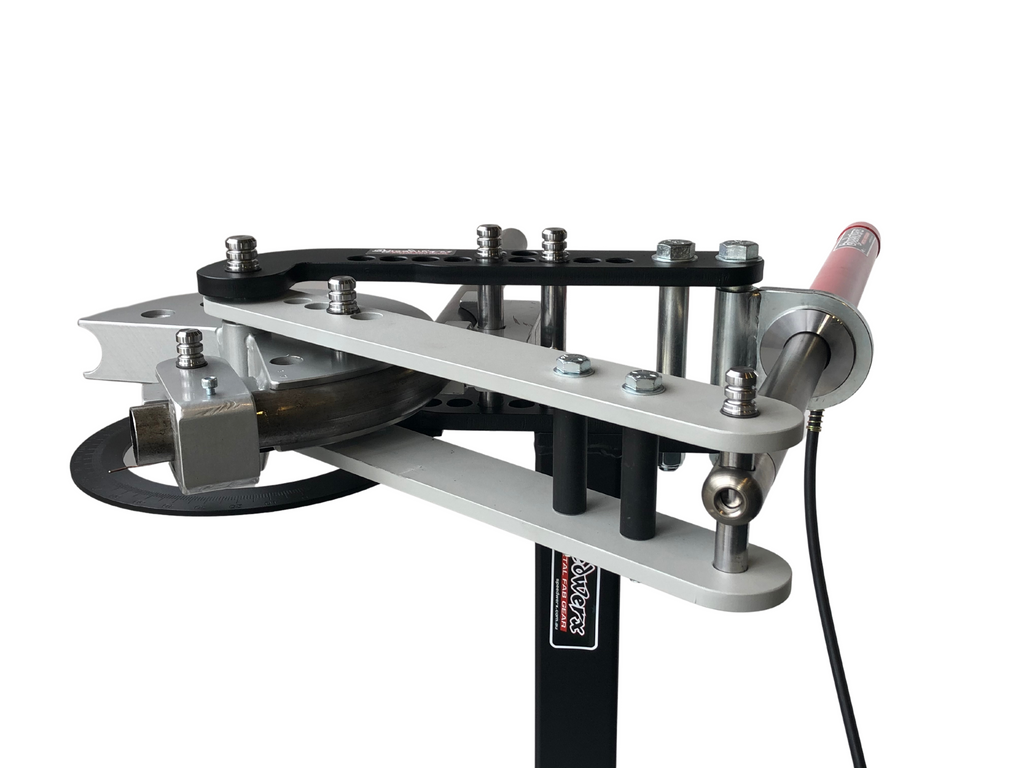

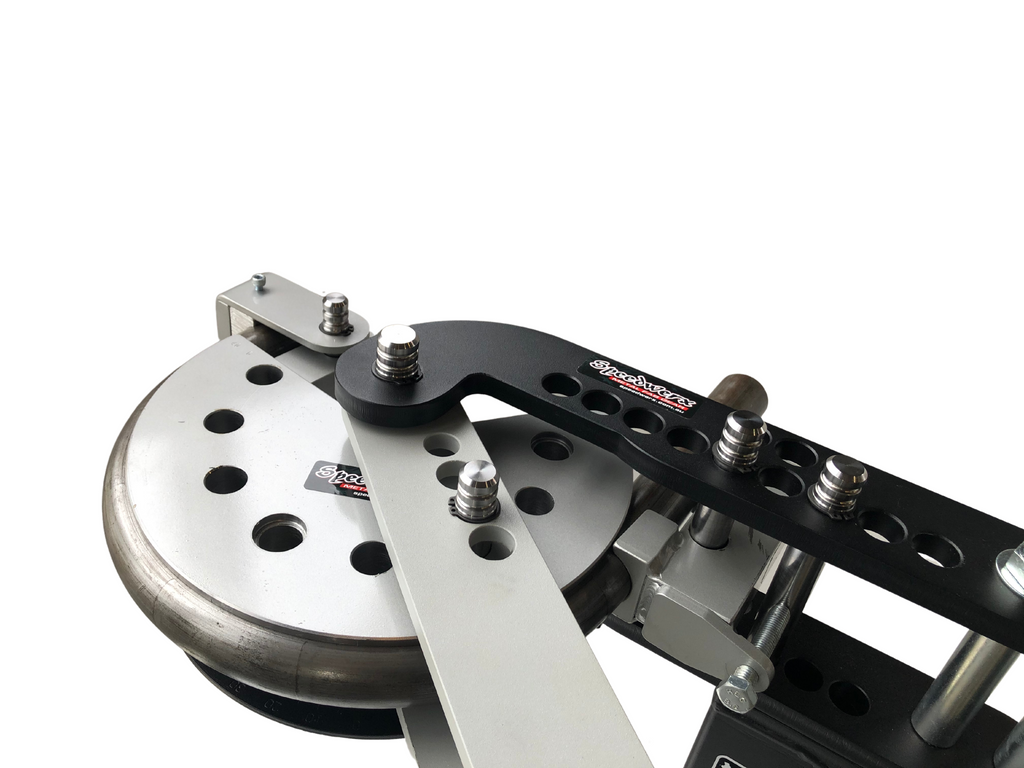

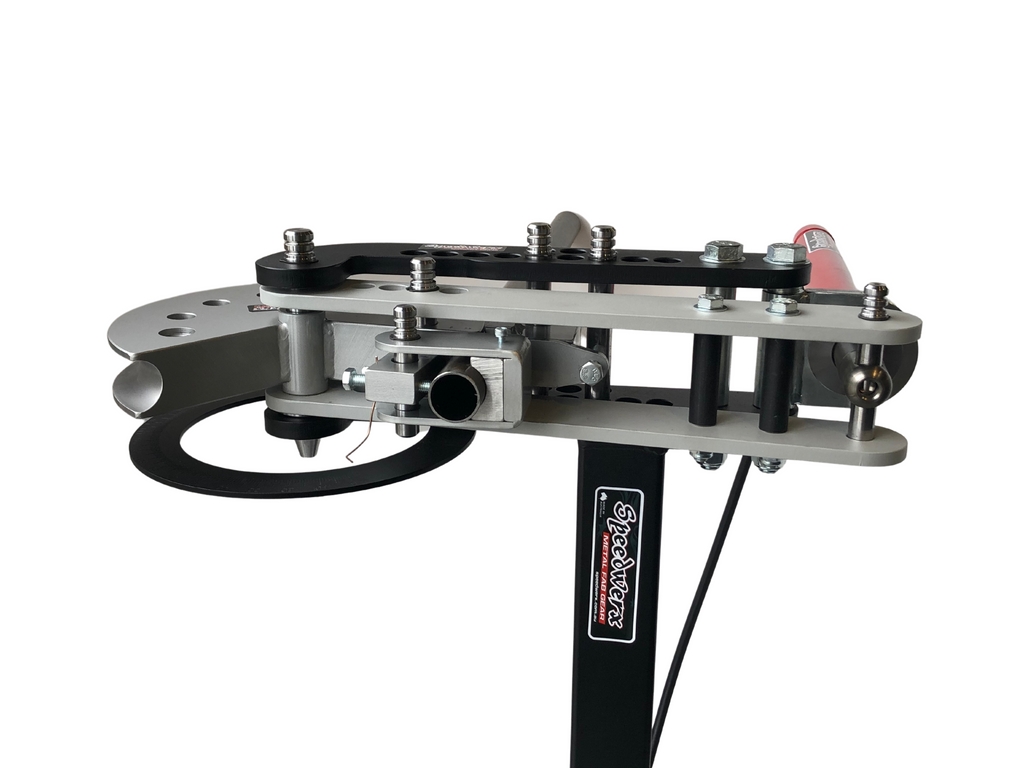

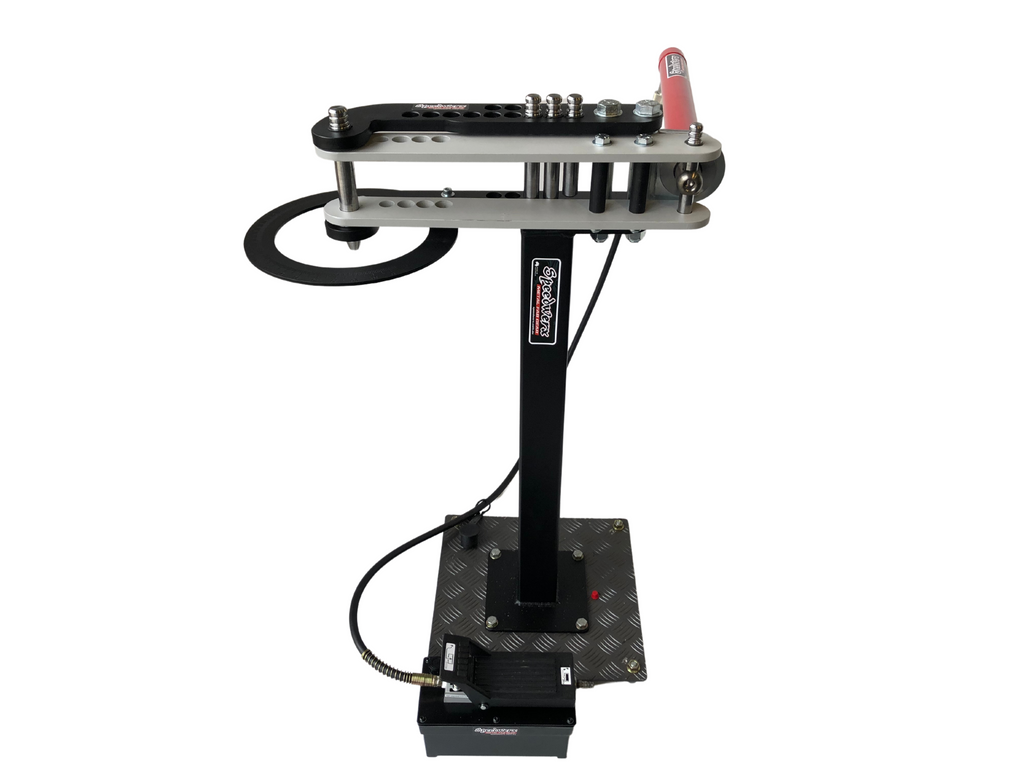

Tube Bender Model 2 Air Hydraulic

$2,485.00

M2BENDA

Speedwerx Model 2 Tube Bender with air over hydraulic actuation is designed and manufactured in Australia by Speedwerx Racing Products. This version of the Model 2 bender offers a "no sweat" approach to doing repetitious or one off bending whilst still maintaining exceptional bend quality which surpasses the requirements for CAMS and ANDRA specification rollcages. Designed predominately for vehicle chassis builders this bender is now used by many different industries such as automotive, marine, aeronautical and general fabrication.

The Model 2 Air Hydraulic bender has an extensive range of die sets available both in 240 and 120 degree die options. Delrin backing blocks are also available as an option if you are doing work on soft materials and need to minimise the chance of marking the material.

If comparing our benders to others remember that Speedwerx Racing Products have the largest range of die sets available, along with spare parts and technical support.

We also offer free* shipping in Australia on orders over $250.

( * excludes some remote and outer areas, heavy orders to residential may also have a fee added )

Video Demonstration Click Here



Includes

Complete bender ( excluding dies )

Air over hydraulic 10000psi foot pump and hose with quick connect coupling

Speedwerx manufactured ram which allows 2 shot 90 degree bends or 3 shot 180 degree bends (*approx 60 degree stroke)

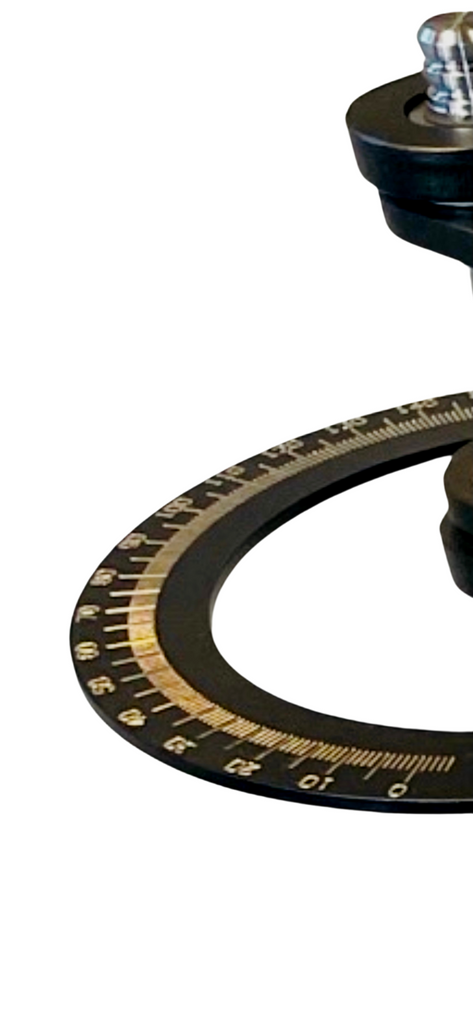

Degree Ring

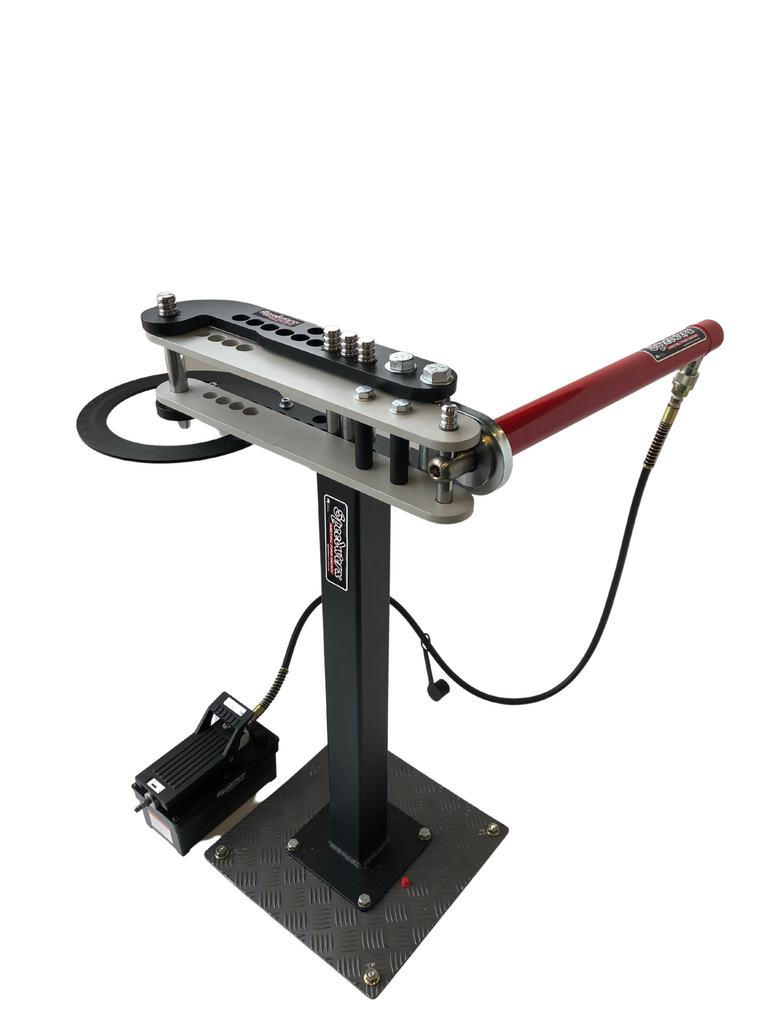

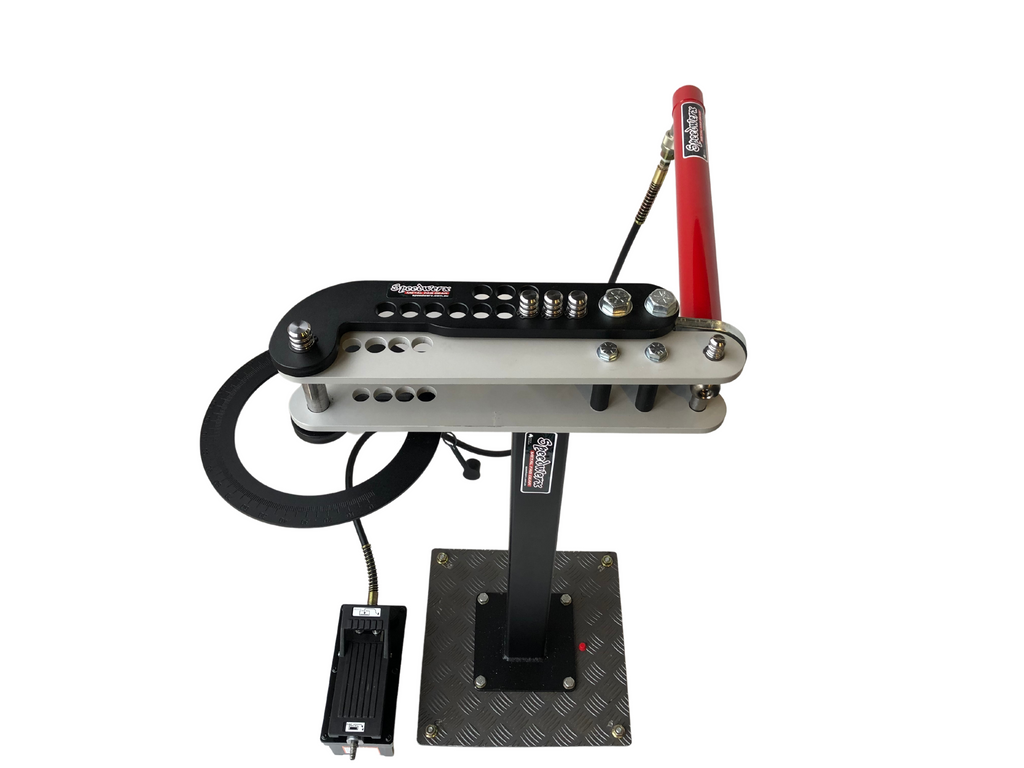

Fabricated Stand ( in combo option )

Assembly instructions

Die sets not included priced separately. See Model 2 Die Sets or click here.

A general workshop compressor is required to operate this bender (Not included)

For further product and technical details, call (02) 4677 1212.

  • Air Hydraulic Actuation ,Single Acting Spring Return
  • Bends up to 21/2" tube 3mm wall and 50nb (60.3mm) Medium Wall Pipe.
  • Upgraded drive arms available as option for heavy wall large diameter bending work
  • 4140 pins

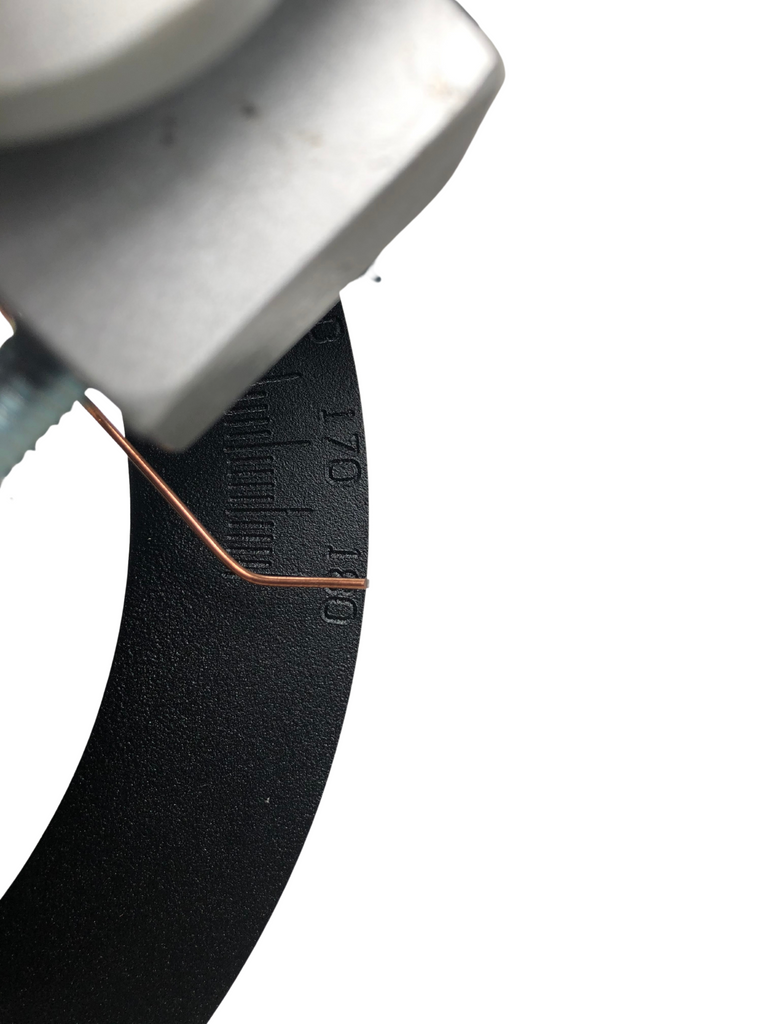

  • Capable of bending up to 180 degrees with appropriate die set
  • Steel bearing for centre pivot pin and main die
  • Bends tube, pipe and square tube with appropriate die sets
  • CNC machined frame & components
  • Dura black powder coat finish
