M2 120° Imperial Tube Die Sets
Model 2 120° Imperial Tube Die Sets

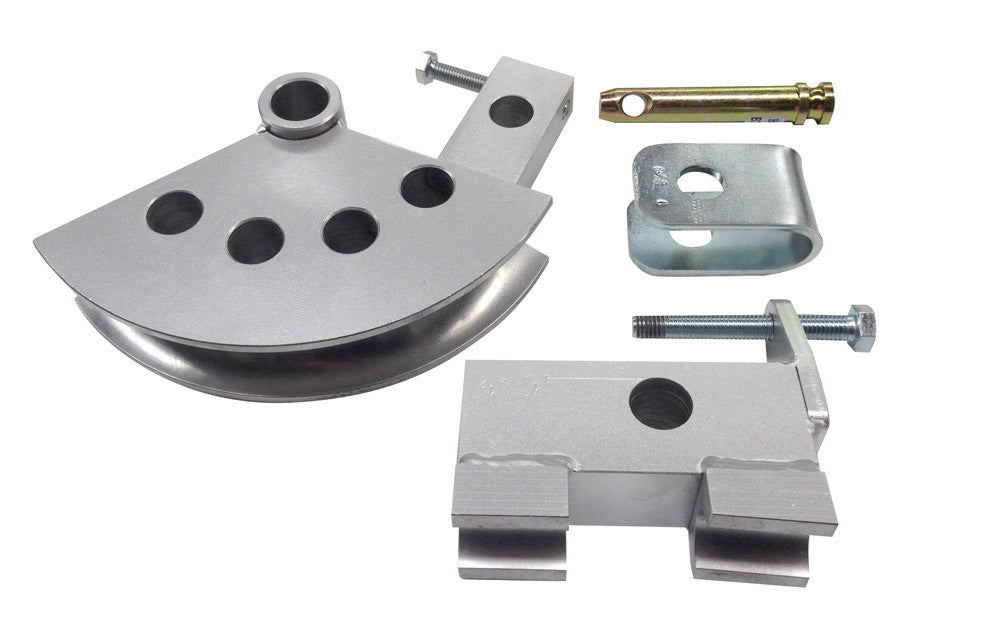

Die sets are 120 degree wrap and includes main die, follow bar, clamp and pin.
Other die sizes are available to special order. Please contact us for die sizes not listed.
Please note tube and pipe are dimensioned differently and therefore require different die sets. Tubing is sized according to it's outside diameter (OD) and pipe is sized by it's nominal bore or inside dimension. However the actual outside diameter of the pipe is used to determine the die set size. The centre line radius is measured from the centre of the die to the centre of the tube or pipe.
Important General Information
Min wall is a guide only for CDS CDW Steel Tube.
For further product and warranty details, contact us.
Please call to confirm availability or to order: firstname.lastname@example.org
Tel 02 4677 1212. Prices subject to change without notice.
- Suitable for Model 2 Tube Bender
