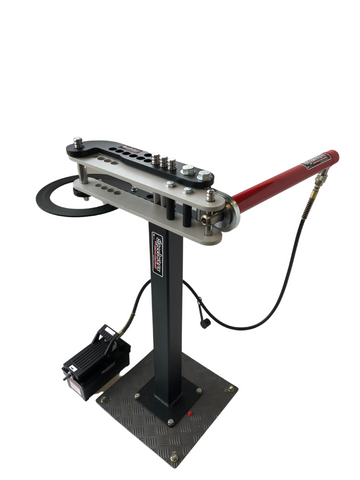

Tube Bender Model 2 Black Heavy Duty
$2,925.00
Speedwerx Tube Bender Model 2 Black Air / Hydraulic is a Heavy Duty version of our popular Model 2 Tube Bender, designed and manufactured in Australia by Speedwerx Racing Products.
This version of the Model 2 bender offers an increase in capacity for extra heavy duty bending applications using heavy wall stainless and chromoly. It has a new bushing system that retains the drive arms to the bender when changing dies over, making the whole process much easier. The Bender drive arms are manufactured from Bisalloy steel and the whole bender has a dura black powder coat finish to make it stand out from the crowd.
Exceptional bend quality which surpasses the requirements for CAMS and ANDRA specification rollcages. Designed predominately for vehicle chassis builders this bender is now used by many different industries such as automotive, marine, aeronautical and general fabrication.
The Model 2 Black Air Hydraulic bender has an extensive range of die sets available both in 240 and 120 degree die options. Delrin backing blocks are also available as an option if you are doing work on soft materials and need to minimise the chance of marking the material.
If comparing our benders to others remember that Speedwerx Racing Products have the largest range of die sets available, along with spare parts and technical support.
We also offer free* shipping in Australia on orders over $250.
( * excludes some remote and outer areas, heavy orders to residential may also have a fee added )
Includes
Complete bender ( excluding dies )
Air over hydraulic 10000psi foot pump and hose with quick connect coupling
Speedwerx manufactured ram which allows 2 shot 90 degree bends or 3 shot 180 degree bends
Degree Ring
Fabricated Stand ( in combo option )
Assembly instructions
Die sets not included priced separately. See Model 2 Die Sets or click here.
A general workshop compressor is required to operate this bender (Not included)
For further product and technical details, call (02) 4677 1212.
- Air Hydraulic Actuation , Single Acting Spring Return
- Bends up to 21/2" tube 4mm Wall and 50nb Pipe (60.3mm) heavy wall
- Upgrade bushing system
- 4140 pins
- Bisalloy Arms
- Capable of bending up to 180 degrees with appropriate die set
- Steel bearing for centre pivot pin and main die
- Bends tube, pipe and square tube with appropriate die sets
- CNC machined frame & components
- Dura black powder coat finish
Related Products
-

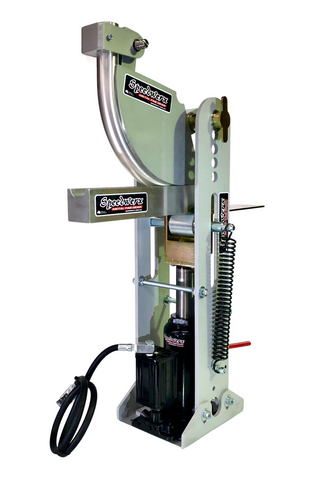

Tube Bender Model 1 Air Hydraulic
-

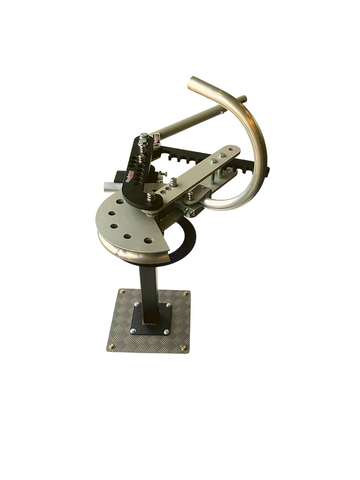

Tube Bender Model 2 Manual
-
